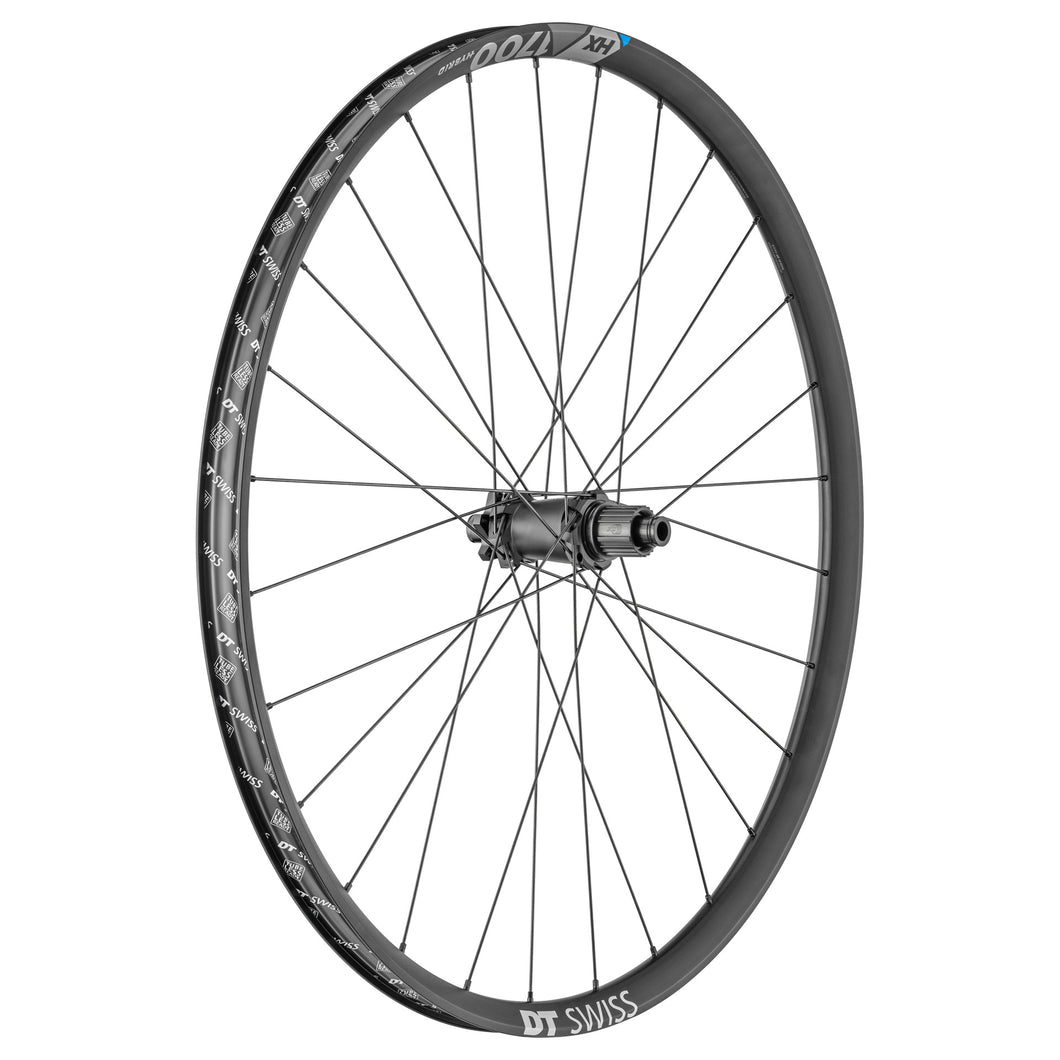

An eMTB is designed to quickly ride up and down mountains and to provide fun. The new HX 1700 SPLINE, the high-end aluminum wheelset, does precisely that. With several years of expertise in hybrid bicycle components and specific, demanding testing procedures, DT Swiss has redesigned this wheelset to suit the extended use of e-mountain biking. The redesigned 350 hub features a bigger hub body, enabling better brake and drive torque resistance, resulting in better durability. The new hub is now combined with a high-end welded aluminum rim and reinforced hybrid spokes. This wheel is available in two inner widths and two wheel sizes and therefore ready for anyone who wants to extend their eMTB adventure.
- Hub type: 350 with Ratchet System 24
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Inner width: 30 mm, 35 mm
- Spokes: DT hybrid 1 straightpull
Increase the agility of lightweight eMTBs using this specific aluminum wheelset. Aligned to the purpose of lightweight eMTBs, the HX 1700 SPLINE LS aim for the right balance between lightness and resistance for more dynamic handling. The 350 hubs have been redesigned for eMTB to offer more resistance to the acceleration and braking forces. In addition, the spokes have been modified to increase their strength without drastically increasing the weight. These wheels are ready to be ridden on the fastest lines in technical sections and to carve into fast and tight turns.
- Built to provide enhanced riding agility for light eMTBs
- Agility-focused aluminum rims are light, yet resistant; helping to enable agile riding
- New Hybrid-specific spokes for an advanced riding experience, combining resistance and lightweight
- Built with the 350 Hybrid LS hub for enhanced reliability and contained weight
FRONT WHEEL
- Rim Width (Internal) 30
- Front Axle 15mm Thru x 110mm
- Valve Presta
- Color Black
- Wheel Size 29"
- Designed for ebike Yes
- Defined Color Black
- ISO Diameter 622 / Road / 29"
- Tire Type Tubeless Ready
- Rim Material Alloy
- Hub/Brake Compatibility 6-Bolt Disc
REAR WHEEL
- Rear Axle 12mm Thru x 148mm
- Rim Width (Internal) 30
- Cassette Body Type Shimano Micro Spline or SRAM XD
- Valve Presta
- Color Black
- Wheel Size 29"
- Designed for ebike Yes
- Defined Color Black
- ISO Diameter 622 / Road / 29"
- Tire Type Tubeless Ready Clincher
- Rim Material Alloy
- Hub/Brake Compatibility 6-Bolt Disc
